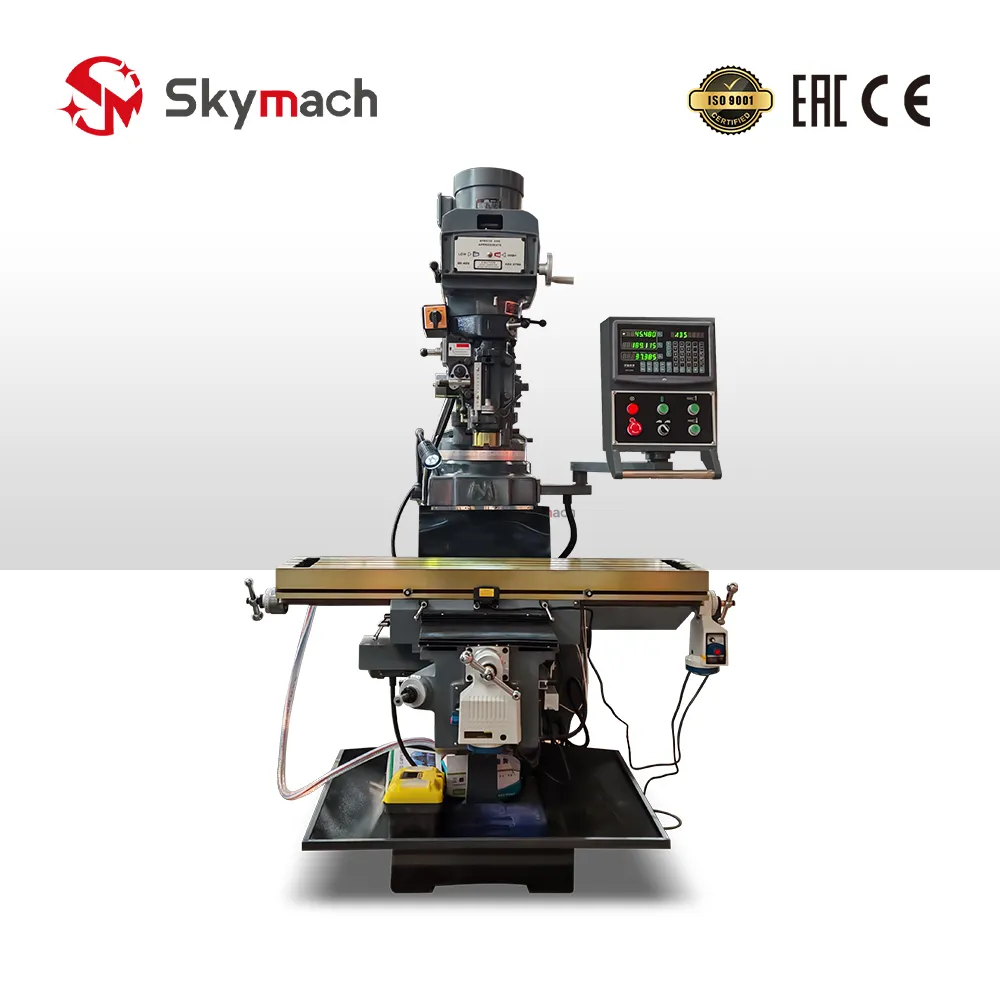

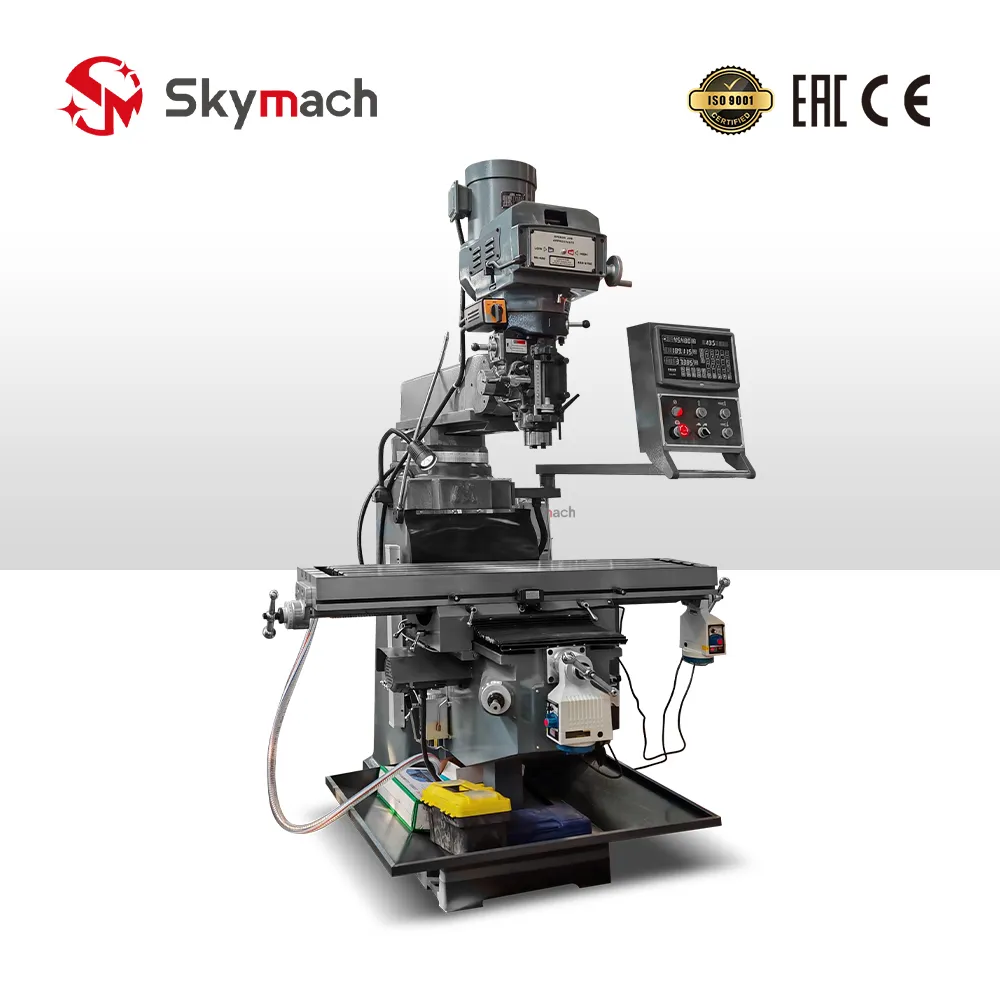

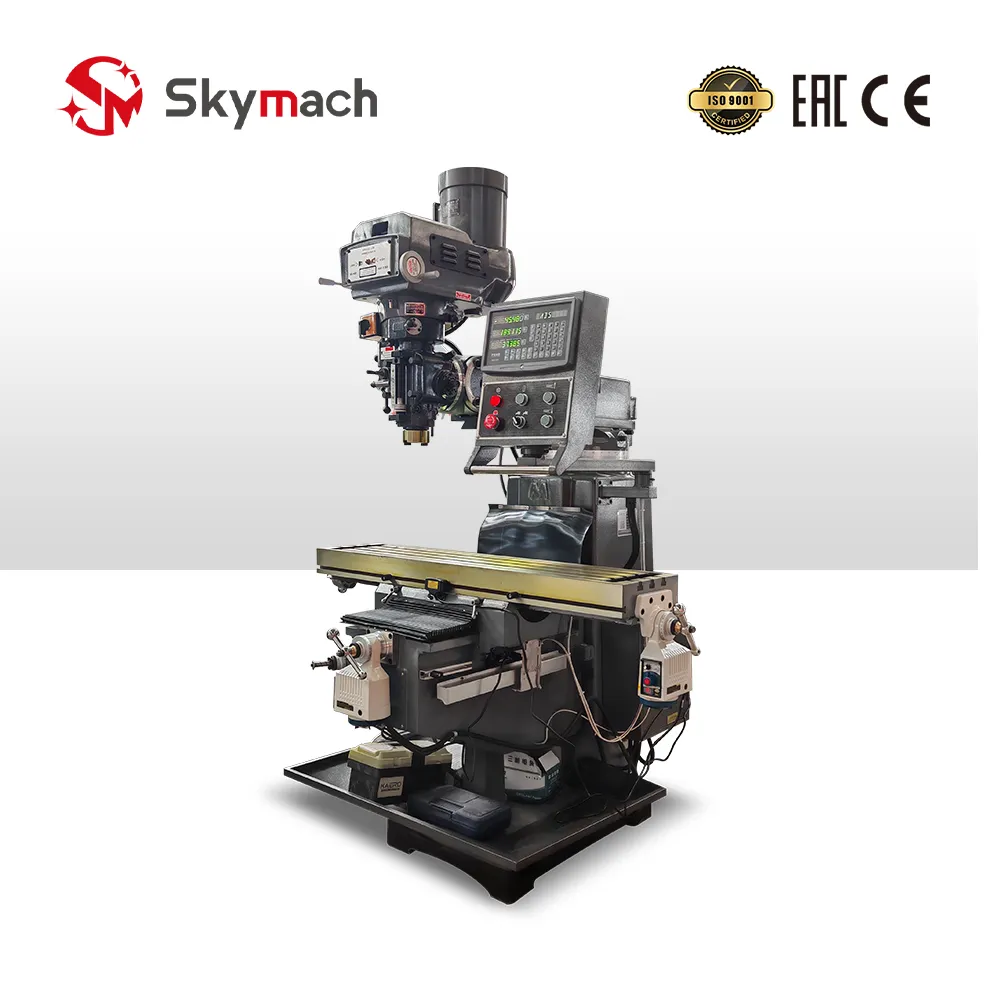

The Skymach 5H (X6330) Precision Turret Milling Machine is built with an enlarged 1370 x 305 mm worktable, an extended 810 mm X-axis travel, and a reinforced 1600 kg Meehanite cast iron structure designed for handling heavier mold bases, large plate tooling, and production parts. Featuring an R8 (optional ISO 40) spindle, a swiveling universal head (±90° lateral tilt / ±45° fore-aft nod), 3-speed automatic quill feed, and a 2.2 kW (optional 3.7 kW / 5 HP) motor, the 5H (X6330) provides superior load capacity and extended machining reach.
Comprehensive Machining Capabilities
- Universal Multi-Angle Articulation: The swiveling turret head tilts ±90° left-to-right and nods ±45° forward-to-rear, allowing operators to execute angular face cuts, compound chamfers, and angled hole arrays with a single part clamping.

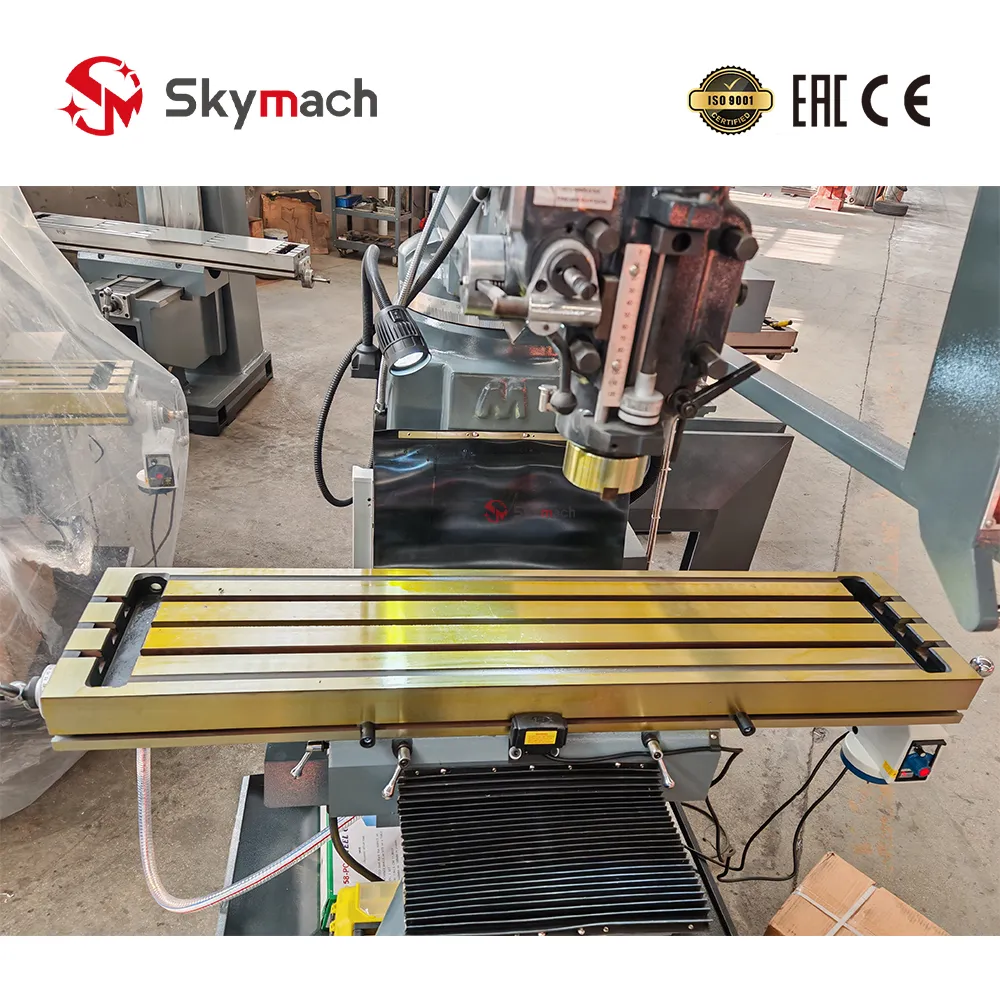

- Extended Working Envelope: With a generous 1370 x 305 mm table size and 810 mm longitudinal travel, the 5H accommodates larger workpieces, modular vices, rotary tables, and dividing fixtures simultaneously.
- Precision Quill Downfeed: 127 mm quill stroke backed by 3 automatic downfeed speeds (0.045, 0.086, 0.142 mm/rev) and a precision micrometer depth stop ensures repeatable, chatter-free boring and reaming.
Key Engineering Highlights
- Heavy-Duty Column & Knee: Engineered with extra-wide slideways coated with anti-friction Turcite-B and high-frequency induction hardening, preserving geometric accuracy and eliminating stick-slip under heavy work loads.
- 360° Rotating Ram Overarm: Heavy dovetail overarm ram slides effortlessly and rotates 360° atop the column, offering maximum flexibility for oversized fabrication.

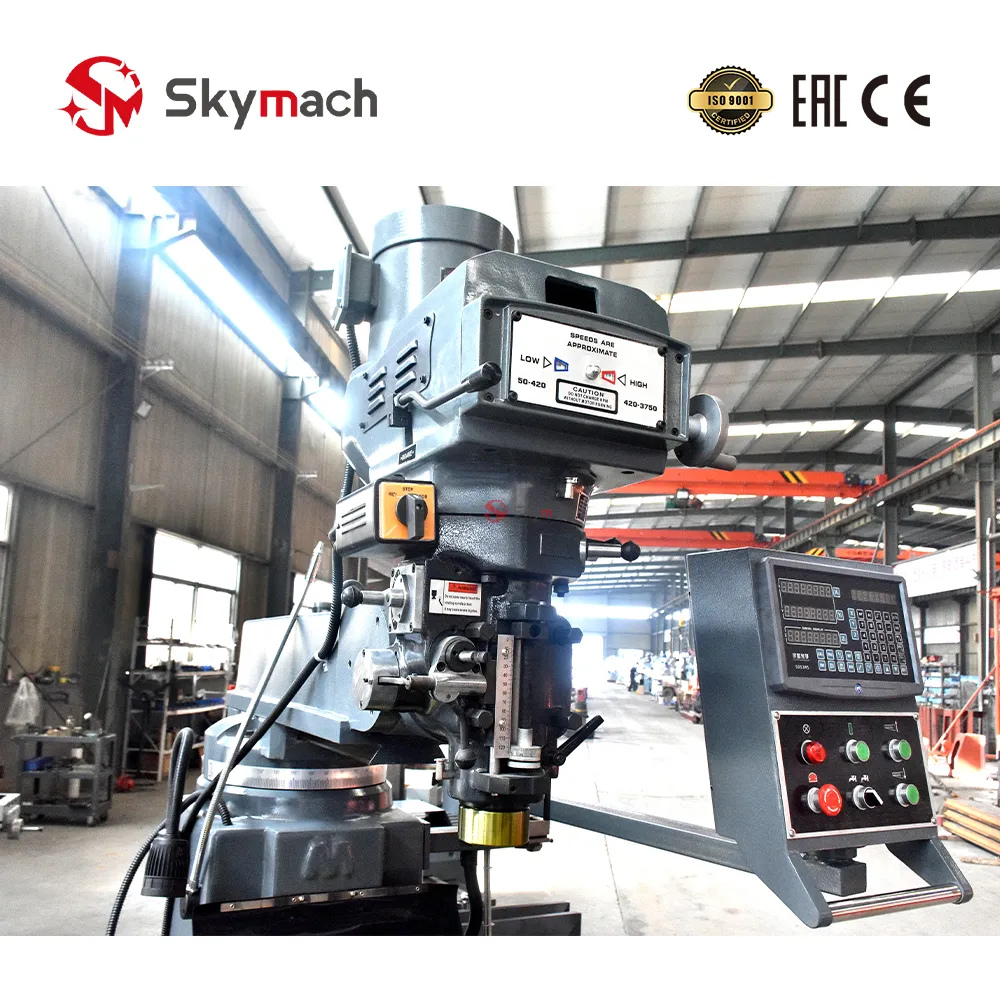

- Flexible Drive Configurations: Available with standard 16-speed stepped pulleys (up to 4,500/5,440 RPM) or electronic variable speed inverter heads (65 - 4,000 RPM) for dial-in speed selection.
Technical Parameters
| Table Size | 1370 x 305 mm |
|---|---|
| Table Travel (X / Y / Z) | 810 / 400 / 400 mm |
| T-Slot (Number - Width x Pitch) | 3 - 16 x 50 mm |
| Spindle Taper | R8 (Optional ISO40) |
| Spindle Speed Range (Steps) | 50Hz: 65-4500 rpm, 60Hz: 80-5440 rpm (16 steps) | Opt. Variable 65-4000 rpm |
| Spindle Travel (Quill Stroke) | 127 mm |
| Spindle Feed Range (Steps) | 0.045, 0.086, 0.142 mm/rev (3 steps) |
| Distance Between Spindle Nose and Table Surface | 90 - 510 mm |
| Main Motor Power | 2.2 kW (Optional 3.7 kW / 5 HP) |
| Head Rotation (Left - Right) | ±90° |
| Head Rotation (Front - Rear) | ±45° |
| Machine Weight | 1600 kg |
| Overall Dimension (L * W * H) | 1550 x 1650 x 2250 mm |
