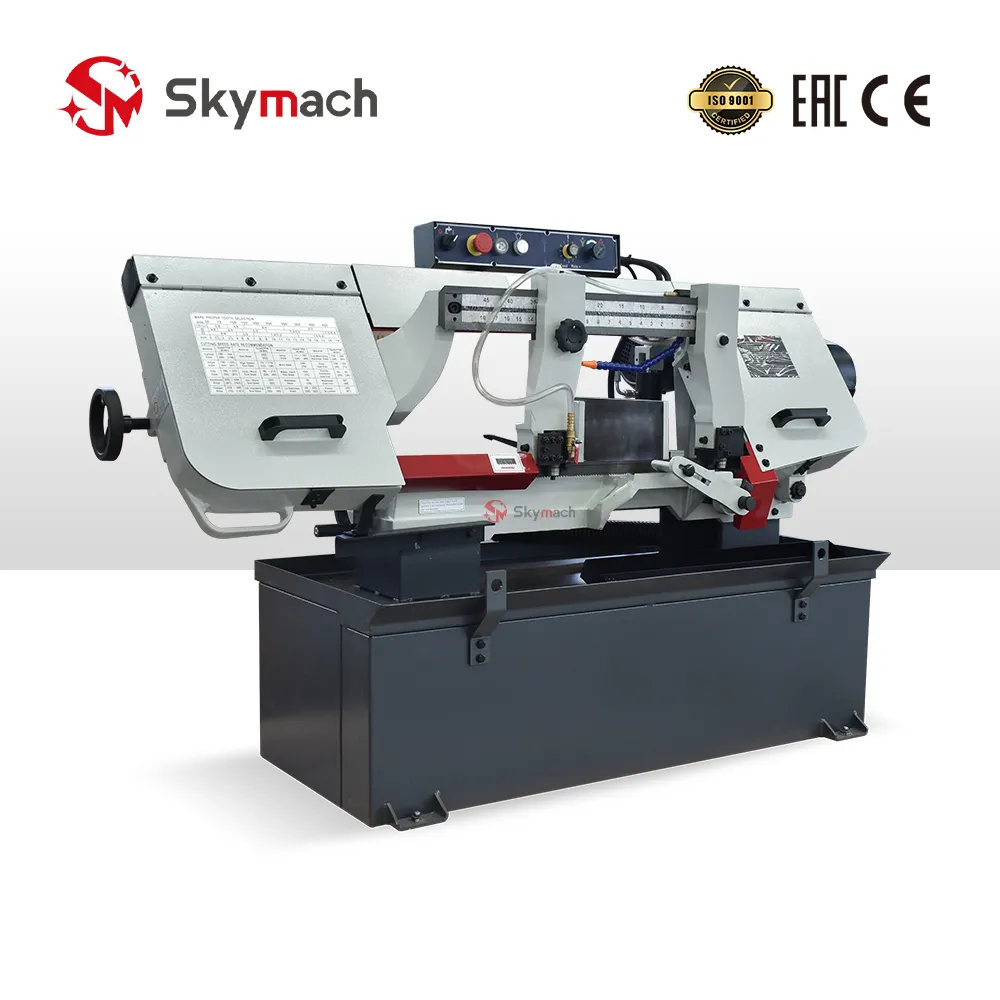

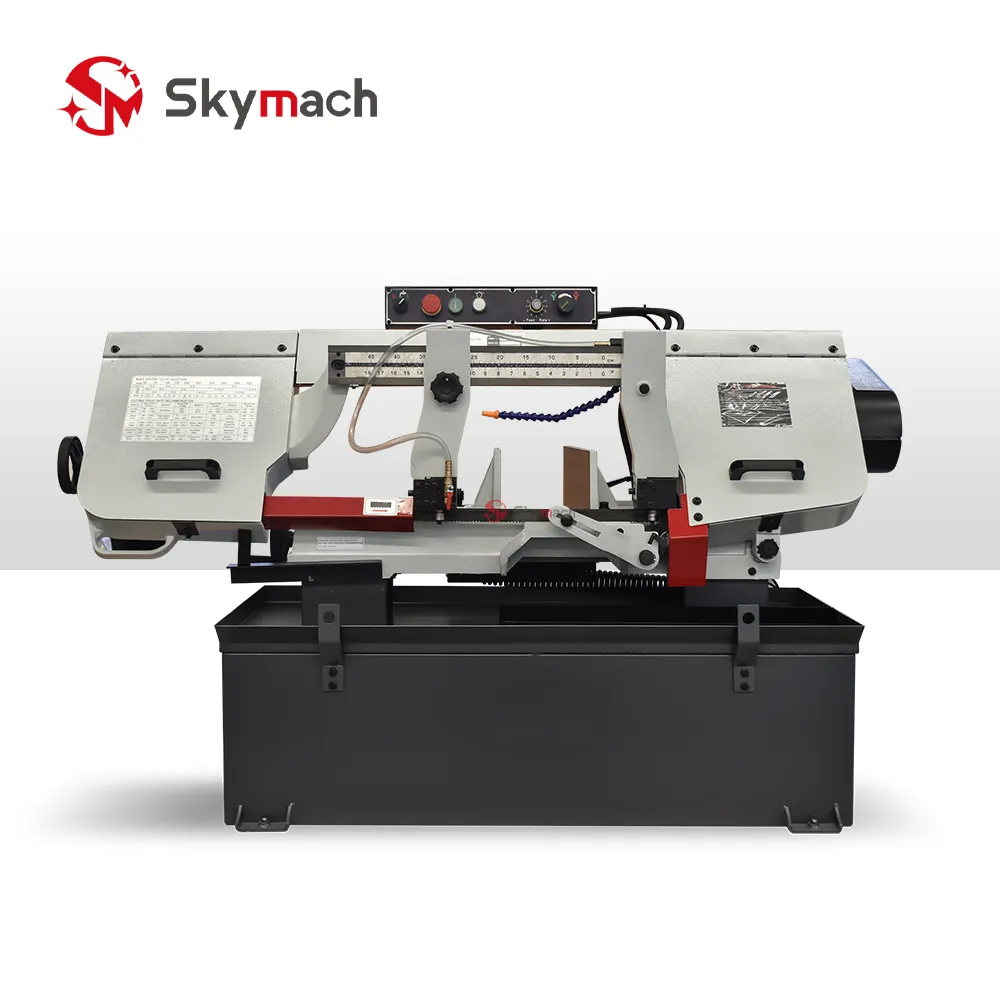

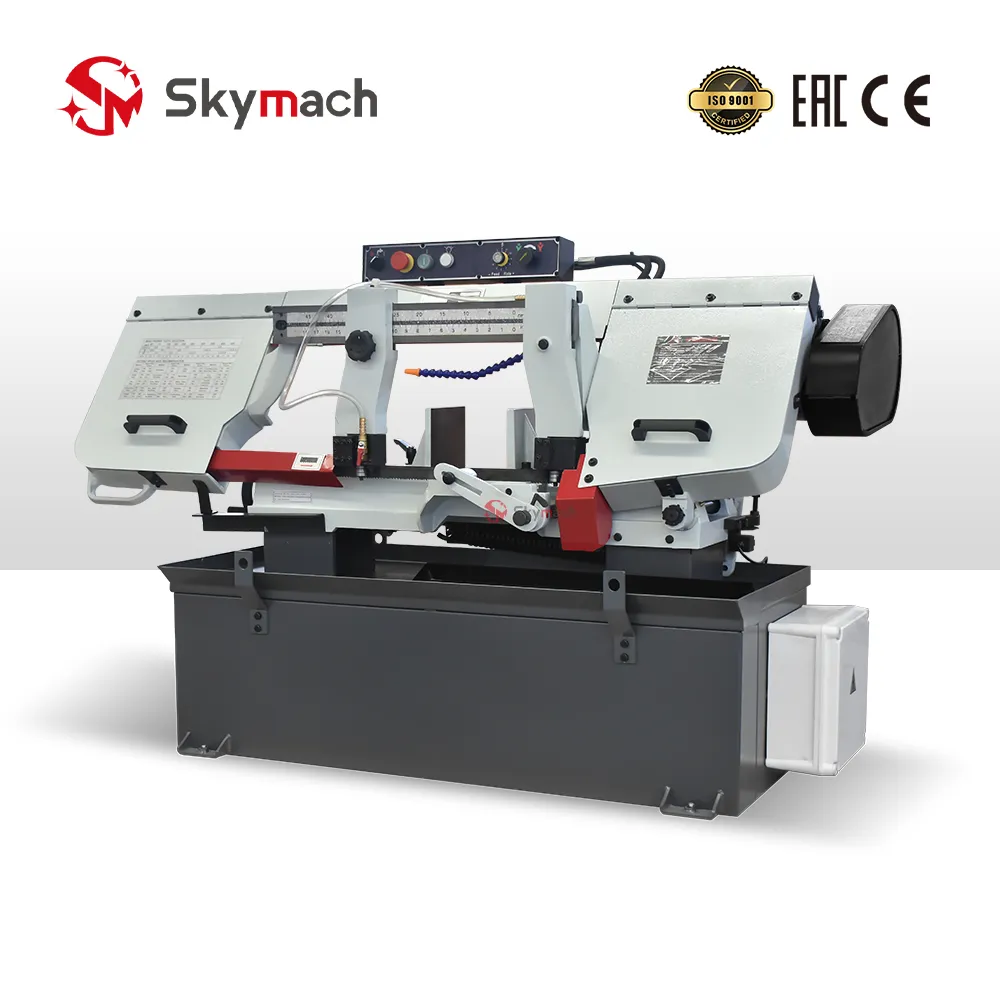

The Skymach BS-1018B Horizontal Metal Band Sawing Machine is an industrial-grade, extra-wide capacity metal cutting saw engineered for fabrication shops, structural steel cutting, machinery maintenance, and production facilities. Built upon a rigid 310 kg heavy welded steel base and precision cast iron bow, the BS-1018B boasts an outstanding 90° cutting envelope capable of handling Φ254 mm (10") round bar and up to 127 x 457 mm (5" x 18") wide structural profiles and plates, alongside 45° angle miter cutting (Φ150 mm round / 150 x 190 mm rectangular).
Performance Highlights & Design Features
- Extra-Wide 457 mm (18") Cutting Width: Ideal for cutting wide structural I-beams, flat plates, box tubing, and large solid alloy billets with strict squareness.
- 4-Step V-Belt Speed Regulation: Powered by a robust 1.5 kW (2 HP, 3-Phase) motor delivering smooth, low-vibration power through a 4-step pulley system (29/50/73/95 MPM at 50Hz, 35/60/88/115 MPM at 60Hz) to suit carbon steels, stainless alloys, and non-ferrous metals.

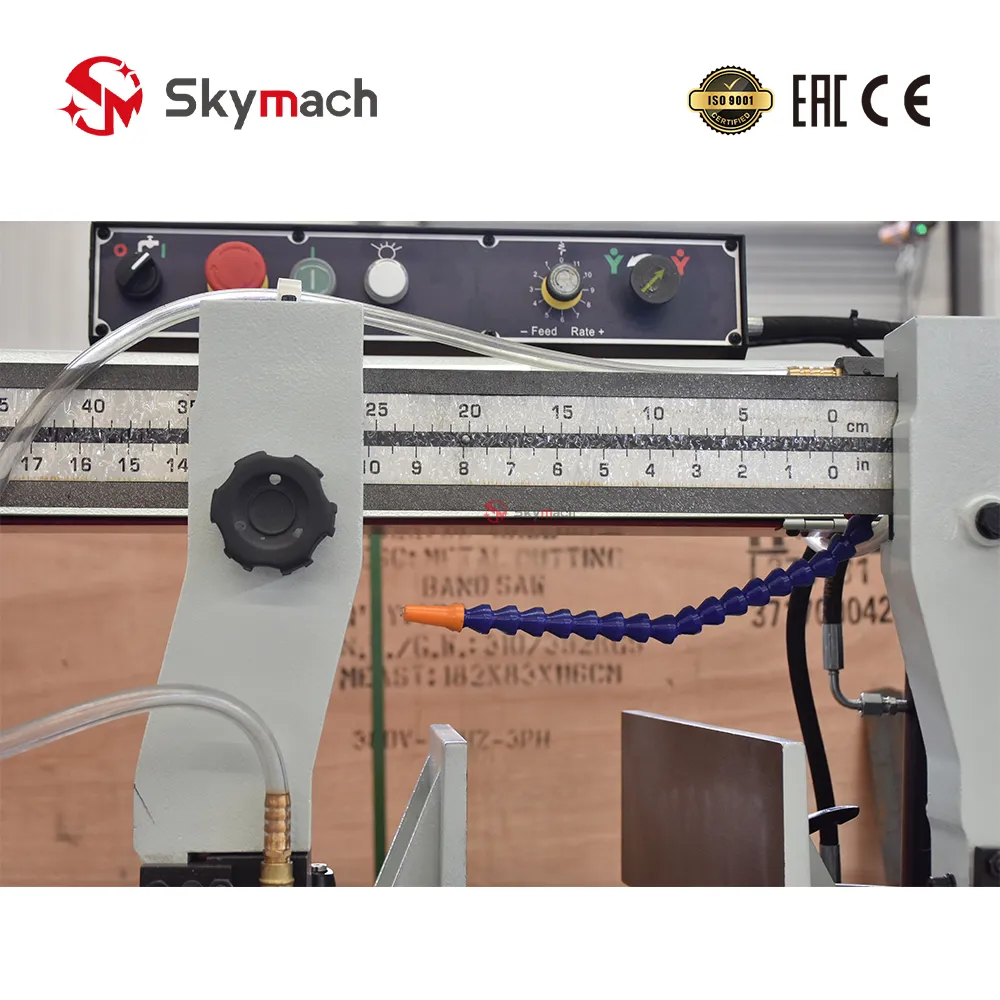

- Precision Hydraulic Downfeed: Equipped with a micrometer needle valve feed regulator for effortless downfeed control and an automatic limit switch that shuts off the blade motor upon cut completion.

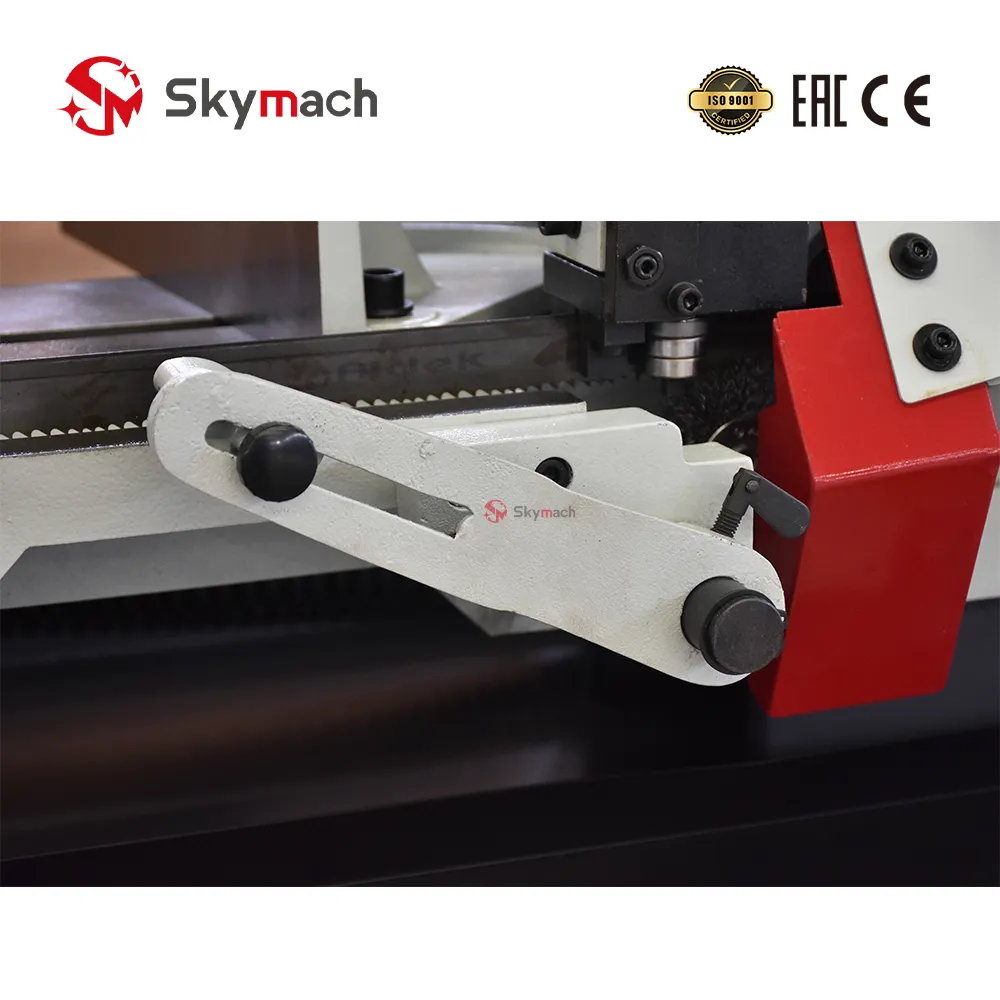

- Industrial Bi-Metal Blade & Guides: Heavy 27 x 0.9 x 3280 mm bi-metal band saw blade guided by paired precision ball bearings and carbide wear pads with recirculating flood coolant nozzle and steel wire chip brush.
Technical Parameters
| 90° Circular Cutting Capacity | 254 mm (10") |
|---|---|
| 90° Rectangular Cutting Capacity | 127 x 457 mm (5" x 18") |
| 45° Circular Cutting Capacity | 150 mm (6") |
| 45° Rectangular Cutting Capacity | 150 x 190 mm (6" x 7.5") |
| Blade Speed (50Hz) | 29, 50, 73, 95 MPM |
| Blade Speed (60Hz) | 35, 60, 88, 115 MPM |
| Blade Size | 27 x 0.9 x 3280 mm |
| Main Motor Power | 1.5 kW (2 HP, 3-Phase) |
| Drive Structure | 4-Speed V-Belt Drive |
| Feeding Type | Hydraulic Downfeed Cylinder |
| Workpiece Clamping Type | Manual Quick-Action Vise |
| Machine Weight (N.W. / G.W.) | 310 / 385 kg |
| Packing Dimensions (L * W * H) | 1830 x 830 x 1150 mm |
